| MOQ: | 1 pair |
| imballaggio standard: | 10 pairs/ carton, carton size: 550*320*320mm |
| Periodo di consegna: | 1-2 work days |
| metodo di pagamento: | T/T, Western Union,Credit Card |
| Capacità di approvvigionamento: | 1000 pairs per month |
RS485 Single Fiber Video Converter FC 20km 1080P HD 2MP Camera
1080P 16Channel Video RS485 Data Singlemode single fiber FC 20km HD AHD/TVI/CVI 2MP Camera
Description
The converter can simultaneously transmit 16ch HD-CVI/TVI/AHD over one multimode or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It is without loss and non-compression real time transmission.
Key Features
|
Non-compression coding technology; |
|
Automatically identify formats of input videos; |
|
Support 16ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable; |
|
DC 5V power supply; |
|
Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc; |
|
Through LED indicators to inform its functional mode; |
|
Industrial wide range of operational temperature; |
|
Plug and play, simple installation. |
Applications
|
City traffic monitoring system |
|
Public security, safe city monitoring system |
|
Highway security protection, charging system |
|
Building, campus monitoring net |
|
Military monitoring (storehouse, frontier defense, guard, nation defense, etc) |
|
electric power, oilfield, television program transmission system |
|
Gymnasium (live video, audio transmission) |
Technical Parameters
|
Feature |
Description |
|
|
|
Fiber Type |
Multi-mode fiber or Single mode fiber |
|
Fiber Connector |
FC/ST/SC |
|
|
Distance |
0~80km (Optional) |
|
|
Wavelength |
Transmitter |
|
|
|
Input level |
>500mVp-p |
|
self-adaption cable equilibrium |
1080p:75-5 |
|
|
Input/Output Impe |
75Ω |
|
|
Physical Interface |
1/2/4/8/16channel BNC connector |
|
|
|
Output level |
1Vp-p |
|
Input/Output Impedance |
75Ω |
|
|
Physical Interface |
1/2/4/8/16 channel BNC connector |
|
|
|
Transmission Media |
Coaxial cable |
|
Baud Rate |
1200～9600bit/s |
|
|
Bit Error Rate |
≤10 |
|
|
Operation Mode |
Half-Duplex |
|
|
Indicators |
LOS,PWR,DATA,VIDEO |
|
|
Mean time between ailures (MTBF) |
＞100 000 hours |
|
|
|
EPS |
DC5V |
|
Power Consumption |
≤5W |
|
|
Operation temperature |
0℃~75℃ |
|
|
Operation Humidity |
10%～90% |
|
|
Atmospheric Pressure |
86kpa~106kpa |
|
|
Mounting Method |
Wall-mounted |
|

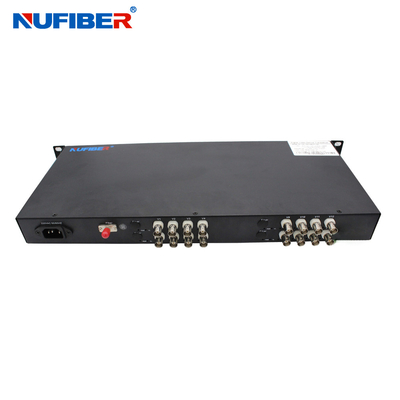

Products Show
Connection Diagram
Packing&Shipping Method
|
|
